SPECIFICATIONS
OrientationLandscape only
High Definition LED DisplayHigh Brightness LED Panel - 3,000 Nits
Resolution1920 x 1080 (1080p)
Contrast Ratio1,300:1
Power RequirementsAC 120V, 60 Hz
Power Consumption120W without speaker bar160W with 40 watt speaker bar
Television Weight (without Speaker Bar)150 lbs.
Mounting Pattern600mm x 400mm (Adjustable)
Television Dimensions59 5/16in W x 34 3/4in H x 6in D (37 3/4in H with Soundbar)
Front of TV to Mounting PointN/A
Television Weight (with 150 watt Speaker Bar)200 lbs.
INPUTS
Ant / CableF type analog (VHF/UHF/CATV) (Digital Air / Cable)
ComponentComponent In (R/L, Pr(Cr), PA(Cb), Y
RS-232C9 pin D-sub male connector
USBPhoto / Music Mode
Audio OutAudio out (3.5mm jack)
HDMI 1HDMI
HDMI 2HDMI (MHL)
HDMI 3HDMI
AV InVideo (Y), Audio L (W), Audio R (R)
VGA/PC InAnalog RGB (PC) In (15pin mini D-sub female connector)
Audio OutCoaxial SPDIF Audio Out
ADDED FEATURES
Full Sun Cooling System ECB3Keeps the unit cool and dry in temperatures up to 140 degrees F (with power supplied)
Full Sun Controlled Heater ECB3Protects TV from temperatures as low a -24 degrees F(with power supplied)

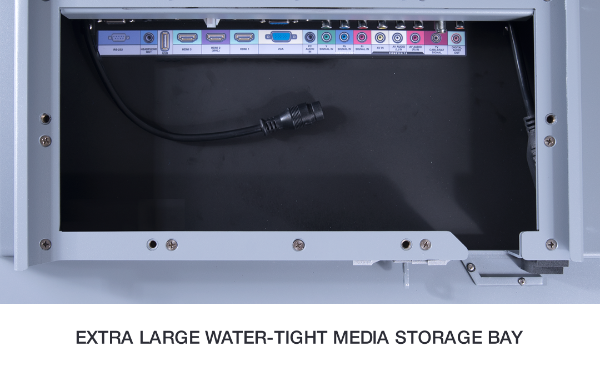

Innovative Water-tight Cable Entry SystemPass-through design keeps cables dry and allows for easy hook-ups (able to be locked)
Anti-Glare/UV Coated ScreensDrastically Reduces Reflection and GlareIncreases Contrast / Protects LED Screen
Weatherproof Remote ControlIncluded with every TV purchase
Optical Bonding Benefits
- Visual Advantages
- Protection
- Higher Clarity
- Increases Strength and Resilience Up To 300%
- Ultra Wide Viewing Angles
- Counteracts Vibration while Displacing Shock Energy
- Higher Contrast Levels
- Improves Heat Dissipation
- Glare Reduction
- Added Durability towards Unexpected Impacts
- Improved Readability
* All dimensions shown are for planning purposes only. We reserve the right to change materials and specifications without notice.

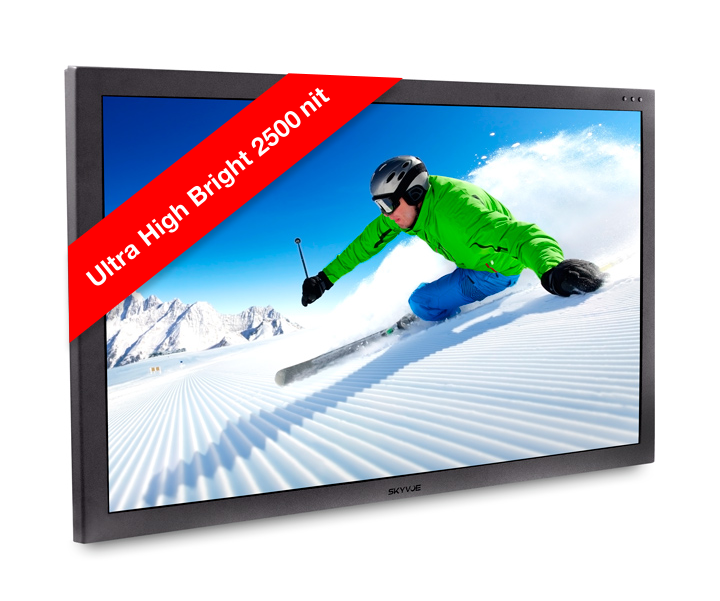

SkyVue's Optically Bonded Outdoor TVs
Direct Sun Readable, Durable Displays, without compromising picture quality
