Unlike indoor TVS, Brightness is 10X more important than anything else for outdoor TV entertainment, and this includes 4k!
- Don't be misguided, this statement is true even in shaded, partial sun, and full sun venues. A customer looking to purchase an outdoor TV needs to spend all they can afford on more brightness.
- A great outdoor TV needs to produce 2,000-3,000 TRUE NIT brightness across the entire viewing area at one time in shade, partial shade, or full sun applications.
- Unfortunately for the outdoor TV customer, HDR was introduced in the last few years. This gave the TV industry marketing departments a path to dramatically inflate advertised NIT brightness levels. What was historically a full screen 600 NIT brightness Non HDR TV, was magically advertised as a 1,000 NIT Brightness HDR TV in a very small area of the screen.
- How could the TV manufactures advertise these inflated NIT brightness levels?
- Before HDR- TVs were always simply rated by their capability in producing NIT brightness across the entire screen all at the same time.
- After HDR- all HDR TV's were rated by their capability to produce a certain NIT brightness level on just a "small area" of the entire viewing area at one time, by robbing NIT brightness away from the rest of your viewing area. Classic "Rob Peter to pay Paul".
- This is why you can not compare any HDR TV NIT rating to a NON HDR TV NIT rating. Its common that a HDR TV's NIT brightness ratings are overrated 65%+
DON'T BE MISLED BY HDR NIT RATINGS!!!
BEWARE OF HDR TV's INFLATED NIT BRIGHTNESS RATINGS
Over the last several years, the consumer electronics market has seen the introduction of HDR or High Dynamic Range. Figuratively speaking, HDR effectively divides the picture into 50-100+ viewing squares.
HDR steals brightness from one square and takes this brightness to another square. No surprise, the entire HDR TV industry saw HDR as an opportunity to change the way they advertised TV brightness.
Before HDR, all TV screens were rated on their ability to produce a sustained level of nit brightness across the TV at the same time. For example - a 2,000 nit Non HDR TV will produce a sustained brightness level of 2,000 nit across the screen at the same time. NON HDR TV's are still rated this way today.
All HDR TV screens are rated on their ability to produce a maximum brightness level only on just a limited amount of squares at the same time.
As an example: a major tv brand advertises a 2,000 nit HDR brightness outdoor tv. It was tested by a third party, and test results showed it only produced a maximum of 1197 nits across the screen at the same time. This is 803 nits less or 40% less than a NON HDR TV brightness rating.
Since nit brightness is 10X more important to outdoor TV viewing than 4K or HDR, this recent change in how nit ratings are advertised is very important to understand before making a purchase.
SPECIFICATIONS
OrientationLandscape only
High Definition LED DisplayHigh Brightness LED Panel - 3,000 Nits
Resolution3840 x 2160 (4K UHD)
Contrast Ratio4,000:1
Power RequirementsAC 120V, 60 Hz
Television Weight (without Speaker Bar)122 LBS
Speaker Bar Weight13 LBS
Mounting Pattern350mm x 350mm
Power Consumption120W without speaker bar140W with 20 watt speaker bar
Television Dimensions61 7/16in W x 40 1/2in H x 6in D (43 1/2in H with Soundbar)
Front of TV to Mounting Point4"

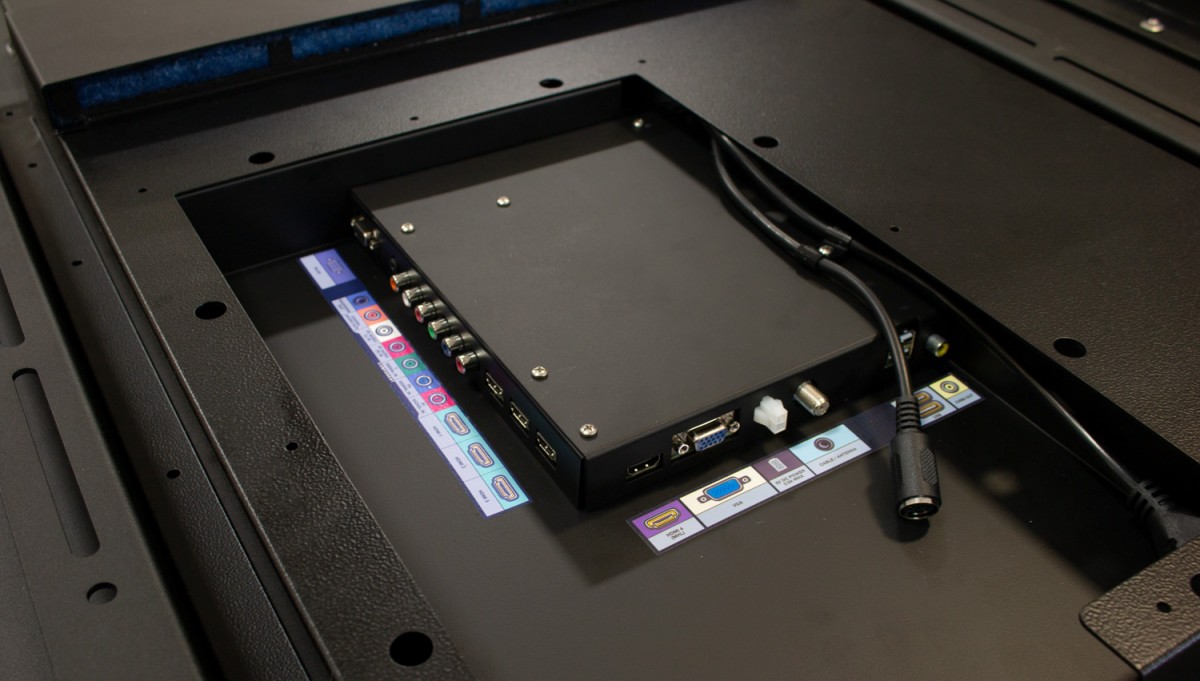

INPUTS
Ant / CableF type analog (VHF/UHF/CATV) (Digital Air / Cable)
ComponentComponent In (R/L, Pr(Cr), PA(Cb), Y
RS-232C9 pin D-sub male connector
USBPhoto / Music Mode
Audio OutAudio out (3.5mm jack)Coaxial SPDIF Audio Out
HDMI 1HDMI
HDMI 2HDMI (MHL)
HDMI 3HDMI
AV InVideo (Y), Audio L (W), Audio R (R)
VGA/PC InAnalog RGB (PC) In (15pin mini D-sub female connector)
ADDED FEATURES
Partial Shade Cooling System ECB2Keeps the unit cool and dry in temperatures up to 140 degrees F (with power supplied)
Partial Shade Controlled Heater ECB2Protects TV from temperatures as low a -24 degrees F(with power supplied)
Innovative Water-tight Cable Entry SystemPass-through design keeps cables dry and allows for easy hook-ups (able to be locked)
Weatherproof Remote ControlIncluded with every TV purchase
Anti-Glare/UV Coated ScreensIncreases contrast and protects the LED screen from the sun's harmful rays
* All dimensions shown are for planning purposes only. We reserve the right to change materials and specifications without notice.
